Product Introduction

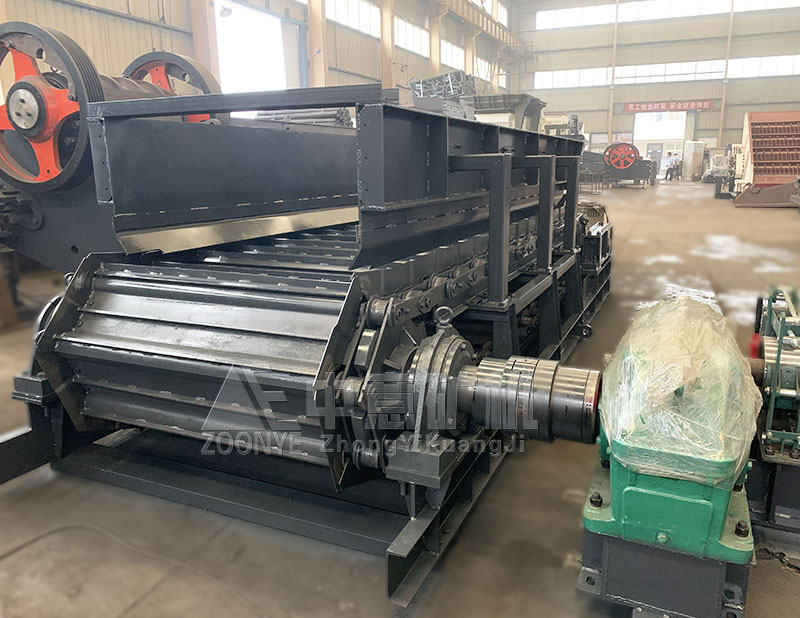

Heavy Duty Plate Chain Feeder

The BW heavy-duty chain plate feeder is a conveying equipment that uses a special metal chain plate as a load-bearing component. The equipment has strong adaptability and large conveying capacity. It can convey fine materials with a particle size of less than 5mm and can also convey more than 1m. of bulk materials. As a silo that continuously and evenly feeds materials to the primary crusher, the chain plate feeder can also be used to transport materials with larger particle sizes and specific gravity over short distances. The heavy-duty apron feeder can be installed horizontally or tilted.

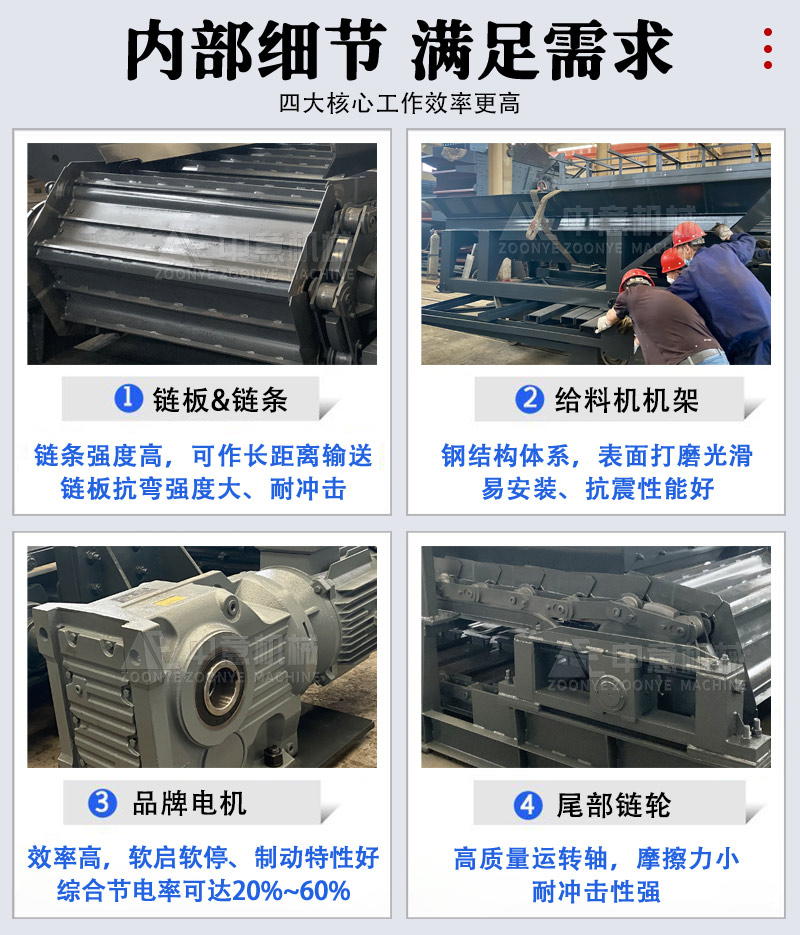

Product advantages

Plate Conveyor

1. The scale plate is stamped and formed from wear-resistant steel, which has good rigidity, strong impact resistance and strong impact resistance.

2. The whole machine has a compact structure, is easy to install and debug, has few wearing parts and is easy to replace.

3. Using chains as traction elements has the characteristics of high strength, high efficiency and reliable operation, and can realize short-distance transportation and long-distance transportation.

4. The crawler-type power transmission method uses rolling friction instead of sliding friction, which effectively reduces the driving power and chain traction; it has low running resistance, low power consumption, small wear, smooth operation, reliable operation and long service life.

5. It can realize short-distance transportation and long-distance transportation; it can be installed horizontally or tilted, with a maximum inclination angle of 20°.

Zhongyi Chain Conveyor Manufacturer

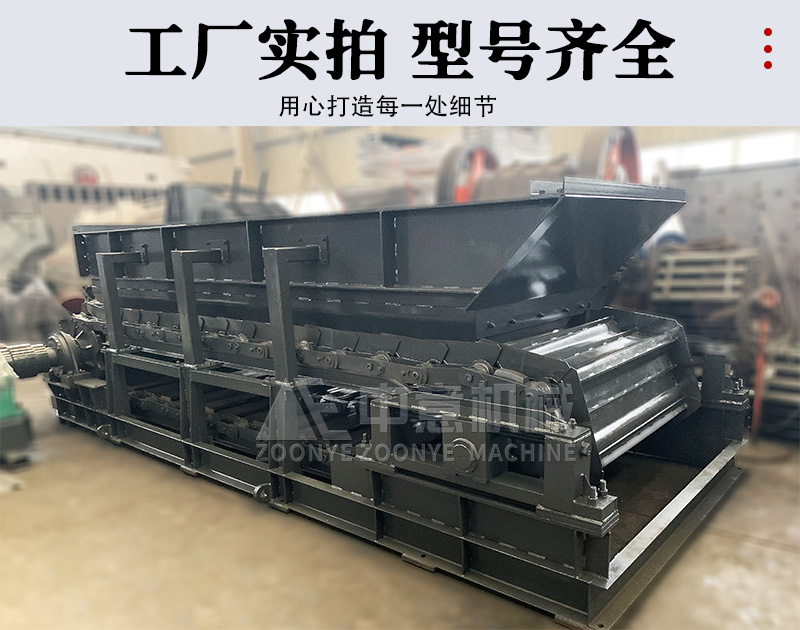

Chain Feeder

Working Principle

The BW heavy-duty chain plate feeder uses two endless flexible plate chains as traction parts. It is equipped with a chain plate carrying materials, which rotates circularly on the guide rail. The material enters from the driven end and is sent out from the active end. The electric motor is driven by a belt through a reducer and coupling to drive the driving sprocket to rotate. The driving sprocket drags the chain to move. The chain is connected to the chain plate for loading materials. The chain and chain plate are supported by upper and lower guide rails. The feed end is a driven sprocket that redirects the chain. The driven sprocket is mounted on the slide rail, and the chain can be tightened by adjusting the slide rail.

Technical Parameters

Note: If browsing on mobile phone, please swipe left or right
