Product Introduction

At present, artificial sand production lines usually use wet production methods. No matter what kind of sand washing machine is used, the loss of sand must be taken into account. Therefore, through the innovative development and production of fine sand recovery machine equipment, this system The device is an intelligent fine material recovery device that absorbs foreign technology and is structured according to my country's actual situation, so that the washed sand can be recycled. This product is widely used in sand and gravel aggregate processing systems for hydropower stations, glass raw material processing systems, and artificial manufacturing systems. Sand production line, coal preparation plant coarse slime recovery and environmental protection projects (slurry purification, etc.).

Fine sand recovery machine

Fine sand recovery machine manufacturer

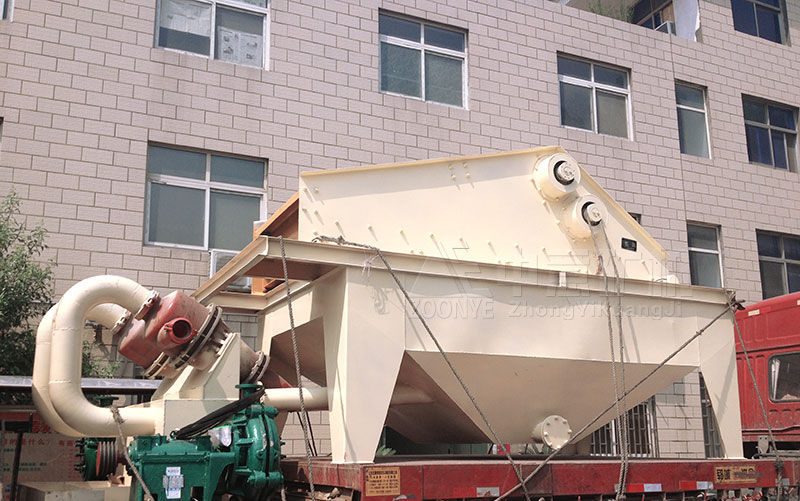

Real shot of fine sand recycling machine

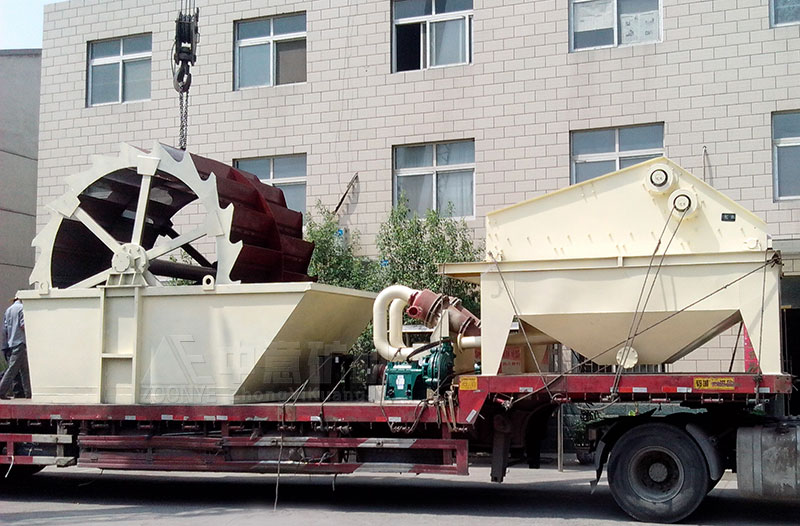

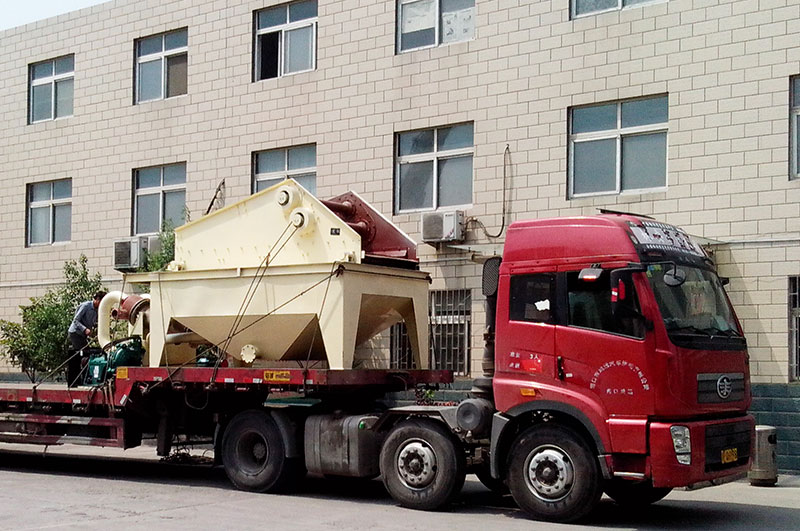

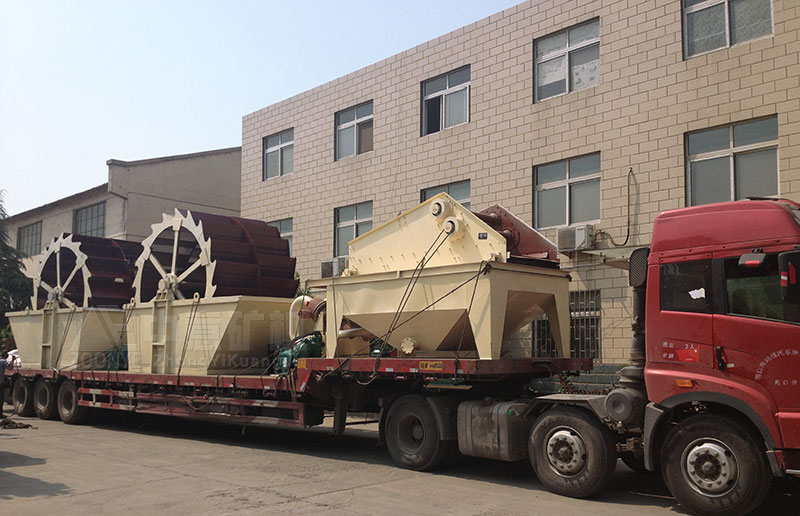

Fine sand recycling machine delivery

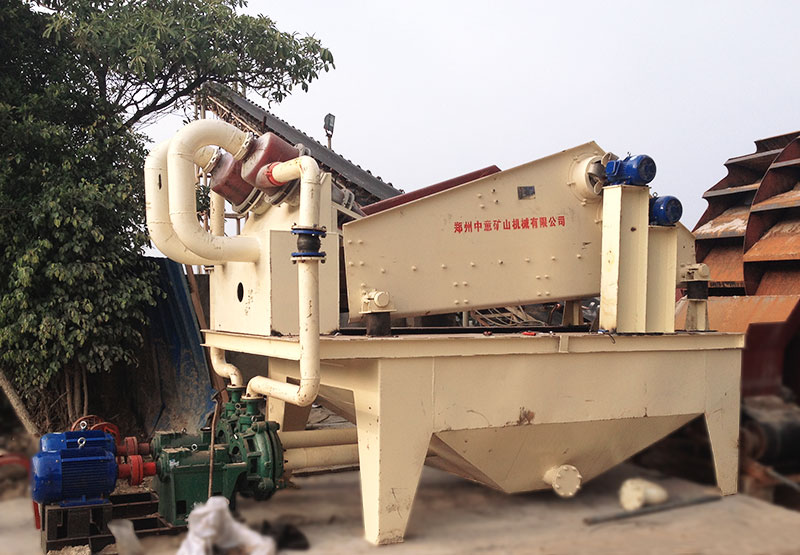

Fine sand recovery machine customer site

Working Principle

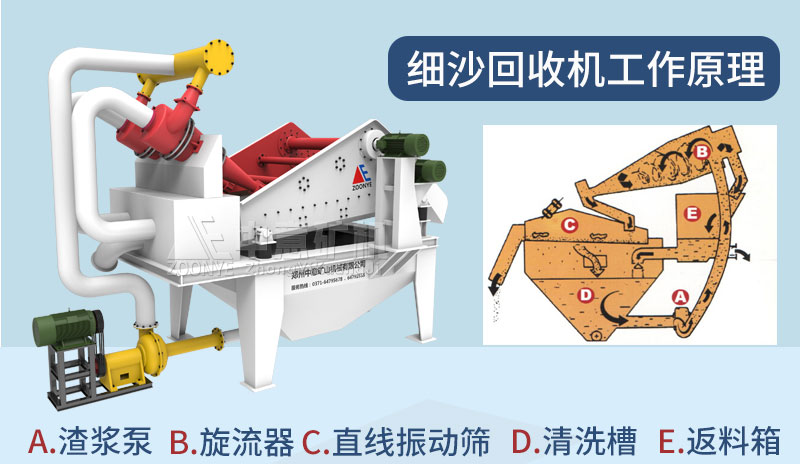

Working principle of fine sand recovery machine

System structure of fine sand recovery device: a production line consisting of electric motor unit, electric pump, cyclone, and linear screen equipment. The sand-water slurry mixture is sent to the cyclone, and the centrifugal classification equipment precipitates the fine sand. After dehydration through the vibrating screen, the fine sand and water are effectively classified, leaving only a small amount of fines. The soil and other materials return to the surface again through the turner. In the cleaning tank, after sand washing, the product reaches the specified limit and is discharged from the discharge port, thus forming three steps of cleaning, dehydration and classification.

Product Advantages

1. Precise manufacturing process and large-volume operation.

2. The vibrating screen uses polyurethane screen mesh. The polyurethane screen mesh has a longer service life than other types of screen mesh and is not easy to block holes.

3. The cyclone is lined with polyurethane, which increases the service life of the entire device.

4. Corresponding solutions can be designed according to the different requirements of users.

5. The fine sand machine equipment reduces the workload of the sedimentation tank and reduces the cleaning cost of the sedimentation tank.

Technical Parameters

Note: If browsing on mobile phone, please swipe left or right
