Product Introduction

ZKR linear screen equipment is a new series of vibration screening equipment innovatively developed based on modern needs on the basis of absorbing vibrating screens from abroad. It is an equipment derived from polymer innovation of linear vibrating screen (linear screen). It is widely used in sand plants, abrasives, chemicals, medicine, building materials, grain, carbon, fertilizers, refractory materials, light industry, mining and other industries.

工厂实拍

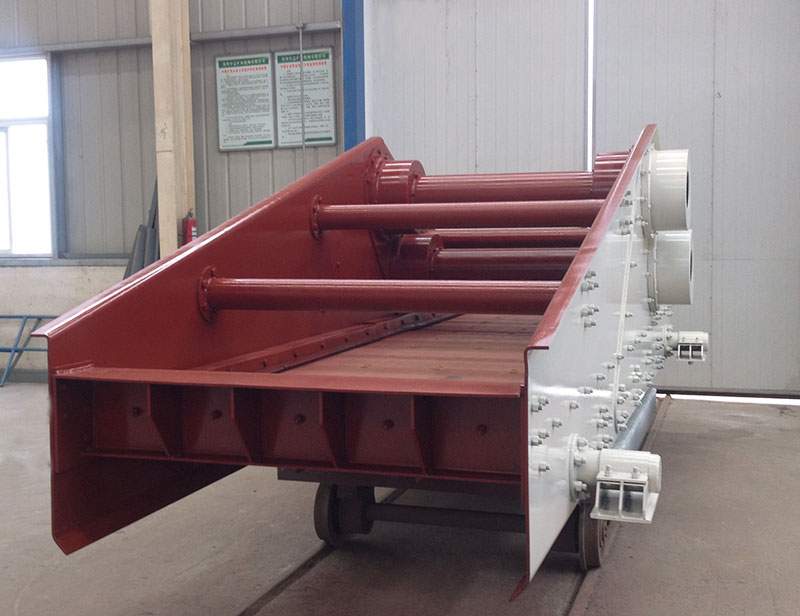

Linear screening equipment

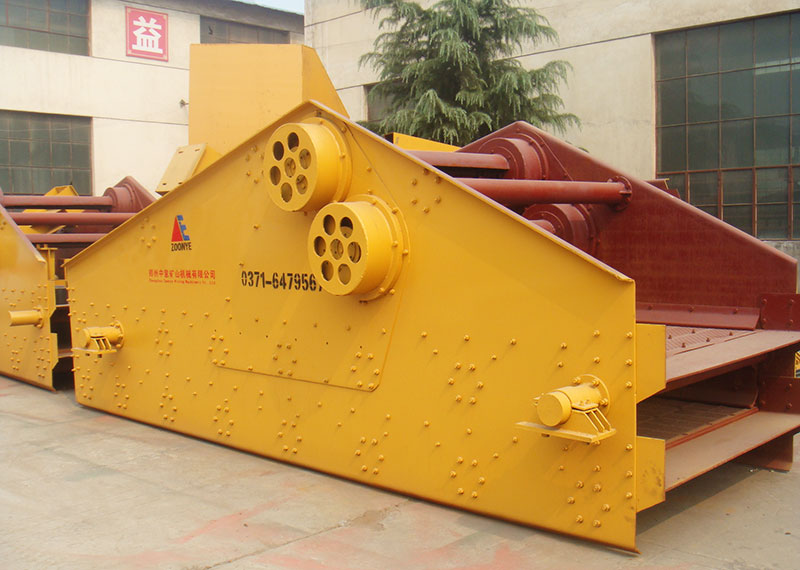

Linear vibrating screen

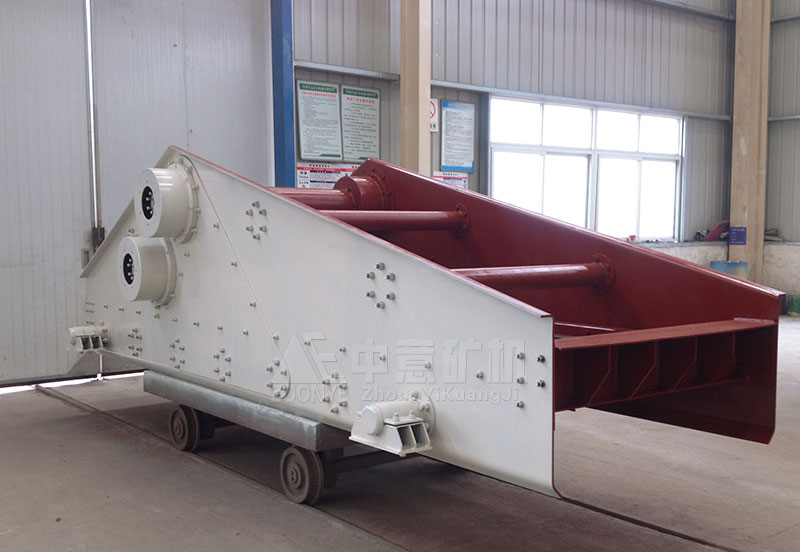

Linear vibrating screen manufacturer

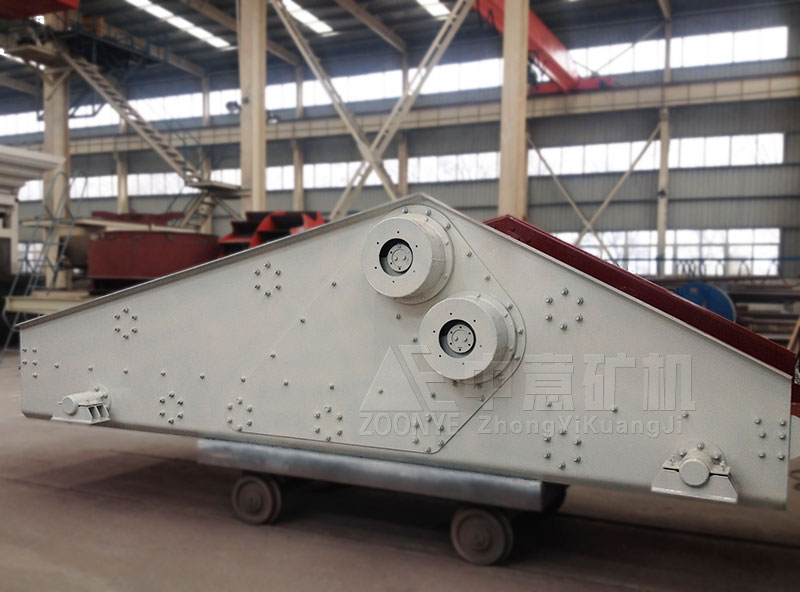

Real shots of linear vibrating screen manufacturers

Working Principle

When two vibration motors installed longitudinally on the screen body rotate relative to each other, the eccentric blocks at both ends of the two vibration motors will generate rated excitation forces. The transverse excitation forces will cancel each other out due to the relative operation of the motors. The longitudinal excitation force is transmitted to the entire screen box through the vibration transmission body, causing the screen surface to vibrate, so that the materials on the screen surface are subject to the excitation force and jump on the screen surface in the direction of the discharged product, which is smaller than the screen hole. The material falls through the screen holes to the lower layer, and flows out from the discharge port after continuous jumping. Due to the reasonable screening process, after the material is classified by the vibrating screen, several materials of different particle sizes can be obtained to complete the material classification operation.

Product Advantages

1. The multi-layer screen produces several specifications of over- and under-sieve objects, which are discharged from their respective outlets.

2. The mesh installation structure of the linear screen eliminates the phenomenon of mixed stages and material stringing.

3. This equipment can provide 24-hour non-interval operation to ensure output and quality.

4. It has low energy consumption, high output, simple structure and easy maintenance.

5. Smooth and reliable operation, low noise, and convenient maintenance and repair.

Technical Parameters

Model	Number of screen layers	Sieve hole size(mm)	Screen area(㎡)	Maximum feeding particle size（mm）	Vibration frequency(r/min)	Double amplitude(mm)	Processing power(m3/h)	Motor function(kw)
ZKR1230	1	0.25～13	3.6	150	16	7～9	5～40	5.5×2
2ZKR1230	2	0.25～13	3.6×2	150	16	7～9	5～40	5.5×2
ZKR1445	1	0.25～50	6.3	300	16	7～9	10～210	7.5×2
2ZKR1445	2	0.25～50	6.3×2	300	16	7～9	10～210	11×2
ZKR1645	1	0.25～50	7.2	300	16	7～9	14～250	11×2
2ZKR1645	2	0.25～50	7.2×2	300	16	7～9	14～250	15×2
ZKR1652	1	0.25～50	8.4	250	16	7～9	90～270	11×2
2ZKR1652	2	0.25～50	8.4×2	250	16	7～9	90～270	15×2
ZKR1845	1	0.25～50	8.1	300	16	7～9	18～324	15×2
2ZKR1845	2	0.25～50	8.1×2	300	16	7～9	18～324	18.5×2
ZKR2045	1	0.25～50	9	300	16	7～9	21～360	18.5×2
2ZKR2045	2	0.25～50	9×2	300	16	7～9	21～360	22×2
ZKR2060	1	0.25～50	12	300	16	7～9	24～480	18.5×2
2ZKR2060	2	0.25～50	12×2	300	16	7～9	24～480	22×2
ZKR2445	1	0.25～50	10.8	300	16	7～9	21～432	22×2
2ZKR2445	2	0.25～50	10.8×2	300	16	7～9	21～432	22×2
ZKR2452	1	0.25～50	12.6	300	16	7～9	25～504	22×2
2ZKR2452	2	0.25～50	12.6×2	300	16	7～9	25～504	22×2
ZKR2460	1	0.25～50	14.4	300	16	7～9	27～540	22×2
2ZKR2460	2	0.25～50	14.4×2	300	16	7～9	27～540	22×2
ZKR3045	1	0.25～50	13.5	300	16	7～9	31～630	22×2
2ZKR3045	2	0.25～50	13.5×2	300	16	7～9	31～630	30×2
ZKR3052	1	0.25～50	15.6	300	16	7～9	36～720	30×2
2ZKR3052	2	0.25～50	15.6×2	300	16	7～9	36～720	30×2
ZKR3060	1	0.25～50	18	300	16	7～9	32～648	30×2
2ZKR3060	2	0.25～50	82×2	300	16	7～9	32～648	30×2
ZKR3645	1	0.25～50	16.2	300	16	7～9	37～756	30×2
2ZKR3645	2	0.25～50	16.2×2	300	16	7～9	37～756	37×2
ZKR3652	1	0.25～50	18.9	300	16	7～9	42～846	30×2
2ZKR3652	2	0.25～50	18.9×2	300	16	7～9	42～846	37×2
ZKR3660	1	0.25～50	21.6	300	16	7～9	54～1080	30×2
2ZKR3660	2	0.25～50	21.6×2	300	16	7～9	54～1080	37×2

Note: If browsing on mobile phone, please swipe left or right
