Product Introduction

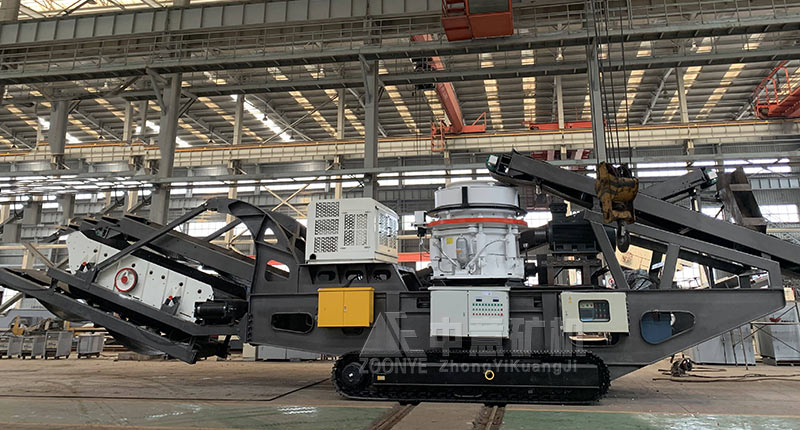

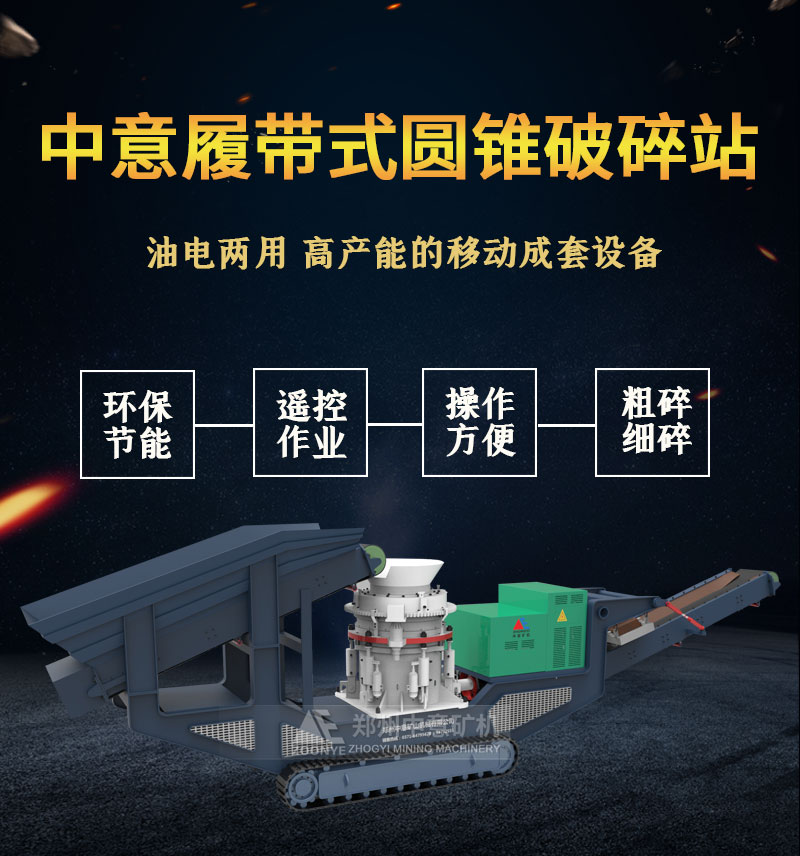

Crawler cone crushing station

The crawler cone crusher equipment innovatively manufactured by our company is mainly suitable for the utilization of different stone recycling resources. Through the feeder equipment, the raw materials are fed into the crusher, and the cone crusher and special vibrating screening equipment are used for continuous environmental protection and effective For operations, the application of screening equipment can also be eliminated according to customer needs. This set of equipment can also be assembled with other auxiliary equipment, which is fully flexible and convenient.

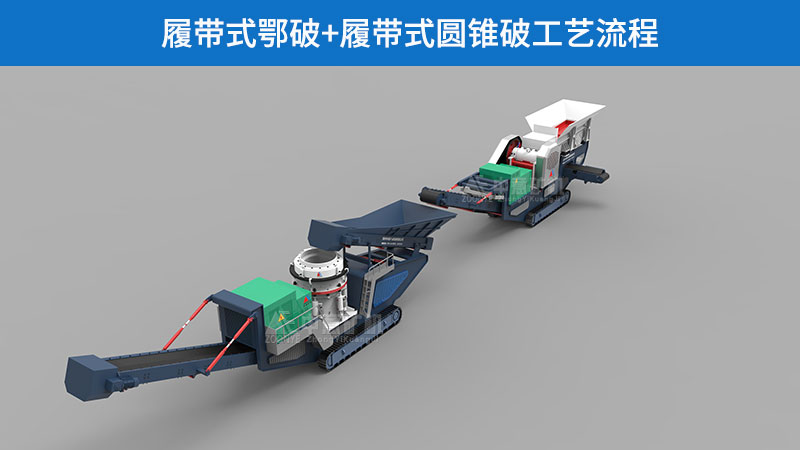

Crawler crushing and screening process

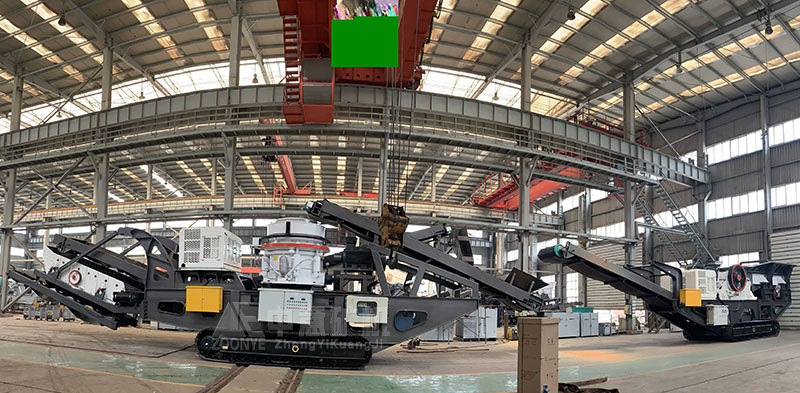

Crawler cone crushing station

Mobile cone crusher

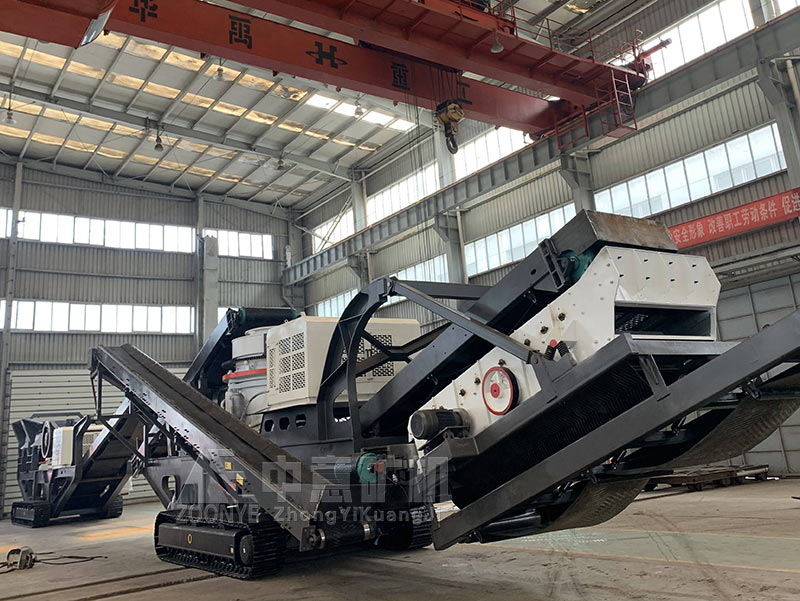

Crawler cone crushing station

Crawler cone mobile crushing and screening of stones and other raw materials

Working Principle

The overall structure is formed by a combination of different objects, including feeders, cone crushers, screening equipment and conveying equipment. It starts with the body chassis and uses a crawler-type drive chassis to move freely. Used to complete medium and fine crushing operations, this equipment can be configured with different types of cone crushers according to provincial needs and output requirements to form high-yield, low-consumption, high-quality recycled aggregates. During the crushing process, the station can rely on external power to drive the host equipment and auxiliary equipment/diesel generator set. The two options reflect the humanized thinking of equipment manufacturing. The raw materials enter the crushing cavity, are evenly fed by the feeder, and are fully crushed in the crusher. The produced medium and fine aggregates arrive at the new material warehouse with the conveyor belt, and those that do not meet the standards are returned for crushing again, thereby ensuring the particle size of the aggregates. uniform shape and excellent quality.

Product Advantages

1. It can be used as a separate crushing unit or constitute a multi-stage operation.

2. Crawler walking does not damage the road surface.

3. High crushing output and easy adjustment.

4. The ship-shaped structure is beautiful and the crushing efficiency is impressive.

5. Don’t be afraid of difficult circumstances and still work as before.

Technical Parameters

Note: If browsing on mobile phone, please swipe left or right
