50-700t/
Capacity
90-450kw/h
Power
≤850mm
Feed Particle Size
Application Scope：It is widely used in ore crushing, railways, highways, large-scale water conservancy and hydropower, construction projects, machine-made sand production, dry mortar, concrete mixing stations, etc.
Suitable Material：Limestone, granite, river pebbles, cobblestones, quartz stone, dolomite, iron ore, concrete, coal, gypsum, etc.
Hotline：0371-64792555
European version impact crusher
The manufacturing process and structural design of the European version of the impact crusher make the finished product cubic, without tension and cracks, with good particle shape, adjustable discharge particle size, and diversified crushing specifications.
European version of impact crusher that can break materials
European version impact crusher
Impact crusher

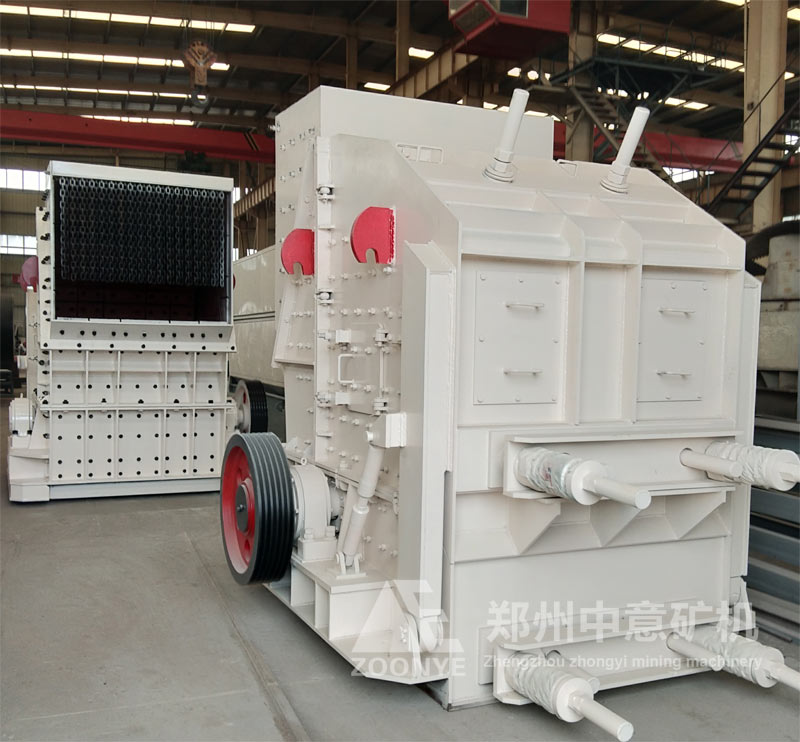

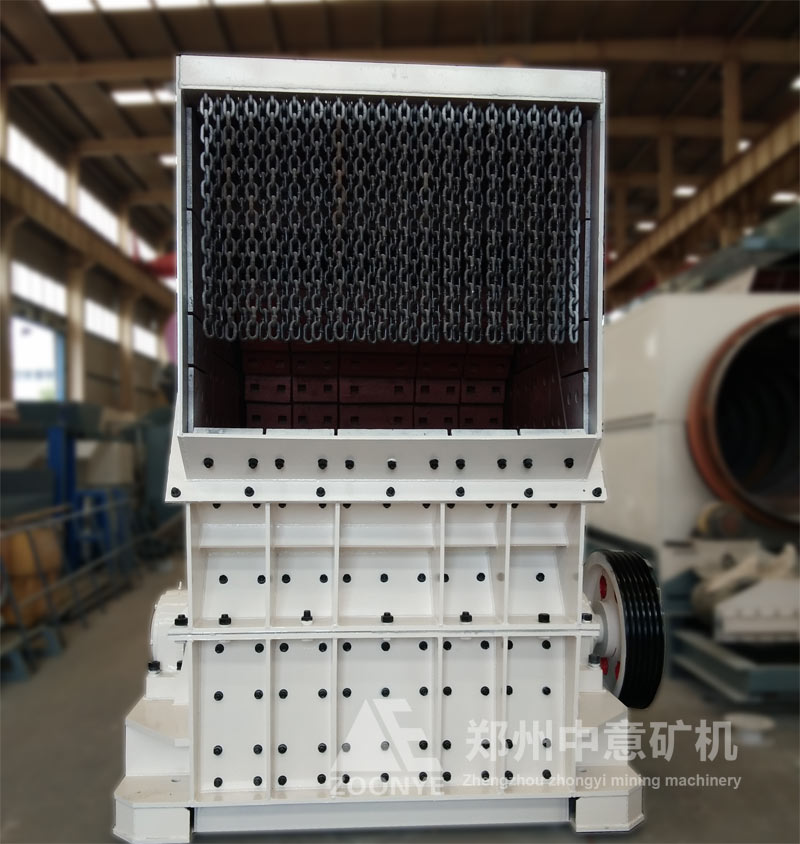

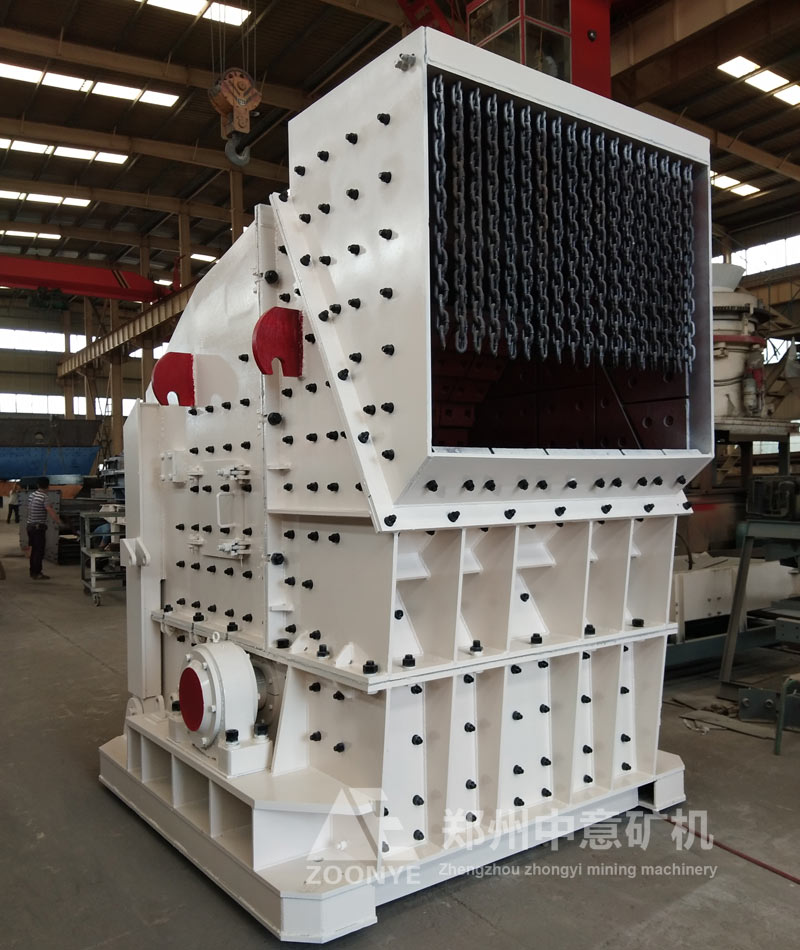

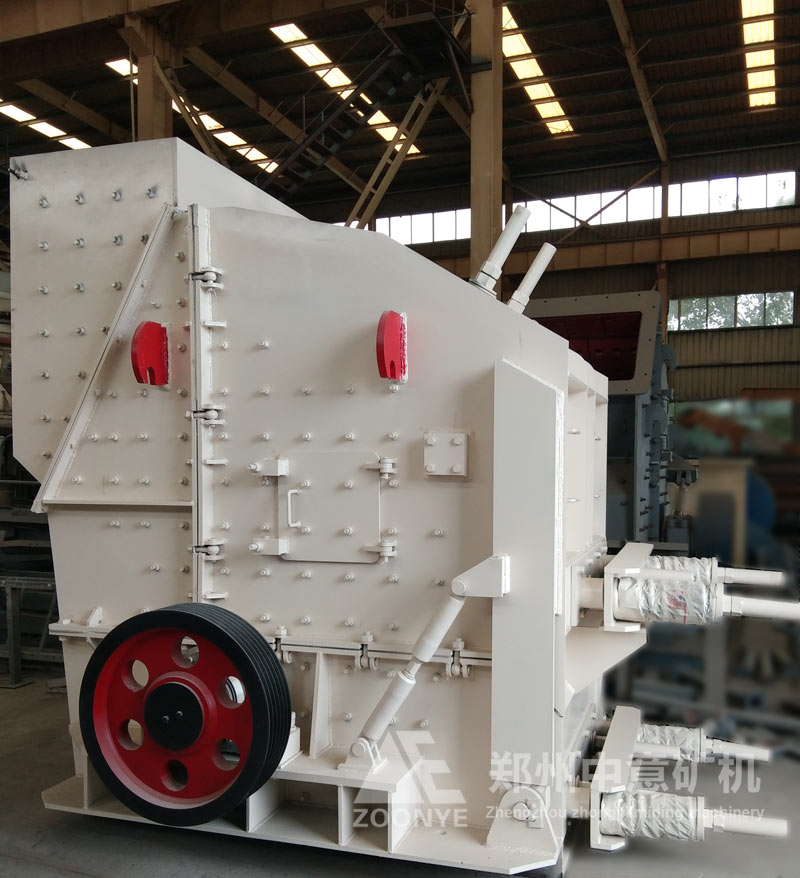

Real shot of the European version of counterattack breaking the factory
European version of counterattack crusher manufacturer

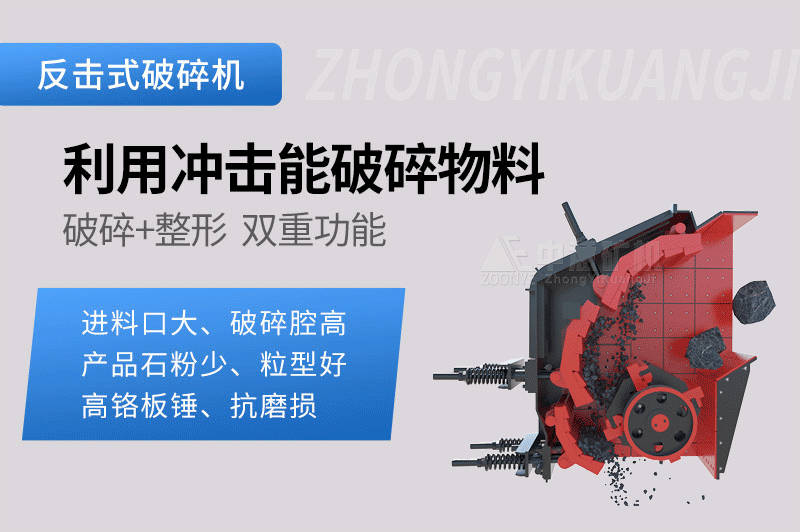

Working principle of European version of counterattack
Based on novel design principles, the impact crusher adopts new concept crushing technology, which can adapt to the crushing of materials of different specifications and meet the requirements of the new process of "multiple crushing, less grinding". The application of the "stone rocking" principle makes the impact crusher not only have a high crushing rate, but also have low unit power consumption. It is a truly energy-saving crushing equipment. At the same time, long-term practice and large-scale projects have also proven that impact crushers are suitable in the field of mineral processing. It has good application prospects.
Strong processing capacity and good particle shape. The equipment has a large crushing rate. The gap between the impact plate and the plate hammer can be flexibly controlled to control the discharged particle size and the particle shape is good. Structure and reliable performance: The structure is light and reasonable, the crushing performance is good, the quality is reliable and stable, the material adaptability is wide, and the safety and reliability are high. Energy saving, low cost The on-site crushing material production line effectively reduces production and operating costs. Wear parts and long life High-strength wear-resistant combination hammer with ribs at the joints to increase hammering strength, service life and safety.
| Model | Specification(mm) | Inlet size(mm) | Maximum feed soft(mm) | Maximum feed hard(mm) | Processing power(t/h) | Power(kw) | Dimensions（mm） |
| PFW0810 | Φ800×1000 | 1080×1060 | 500 | 300 | 50-80 | 90 | 2900×2000×2500 |
| PFW1310 | Φ1300×1000 | 1170×1060 | 650 | 350 | 80-150 | 132-160 | 3250×2000×2650 |
| PFW1314 | Φ1300×1400 | 1170×1460 | 750 | 400 | 120-250 | 200-220 | 3450×2450×3000 |
| PFW1315 | Φ1300×1500 | 1290×1550 | 800 | 450 | 150-300 | 160-250 | 3500×2710×2800 |
| PFW1318 | Φ1300×1800 | 1170×1820 | 800 | 450 | 250-500 | 160×2 | 3500×3050×2800 |
| PFW1520 | Φ1500×2000 | 1200×2082 | 850 | 500 | 300-700 | 400-450 | 3828×3300×3215 |
Note: If browsing on mobile phone, please swipe left or right
