Product Introduction

The JC series jaw crusher uses an innovative modular, weld-free frame structure that provides the equipment with maximum fatigue resistance, reliability and multiple mounting options, as well as high-quality cast steel components. The type of rolling bearing fully guarantees high productivity, high efficiency and low cost of the crushing operation. Whatever your crushing needs, from hard, solid abrasive rock to a variety of recycled materials, you can find a solution with the JC Series Jaw Crusher.

Zhongyi crusher produces finished products with excellent particle shape and low needle and flake content.

JC type jaw crusher is more durable without welding

Satisfactory strength, manufacturing with ingenuity

Hard rock crushing, large output

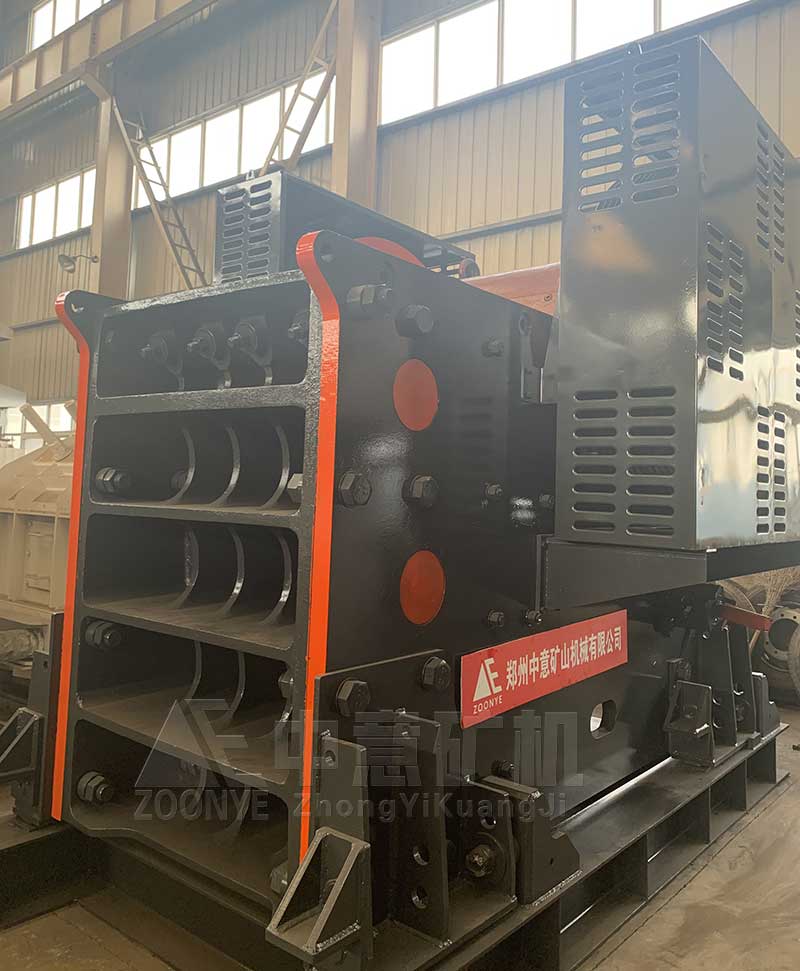

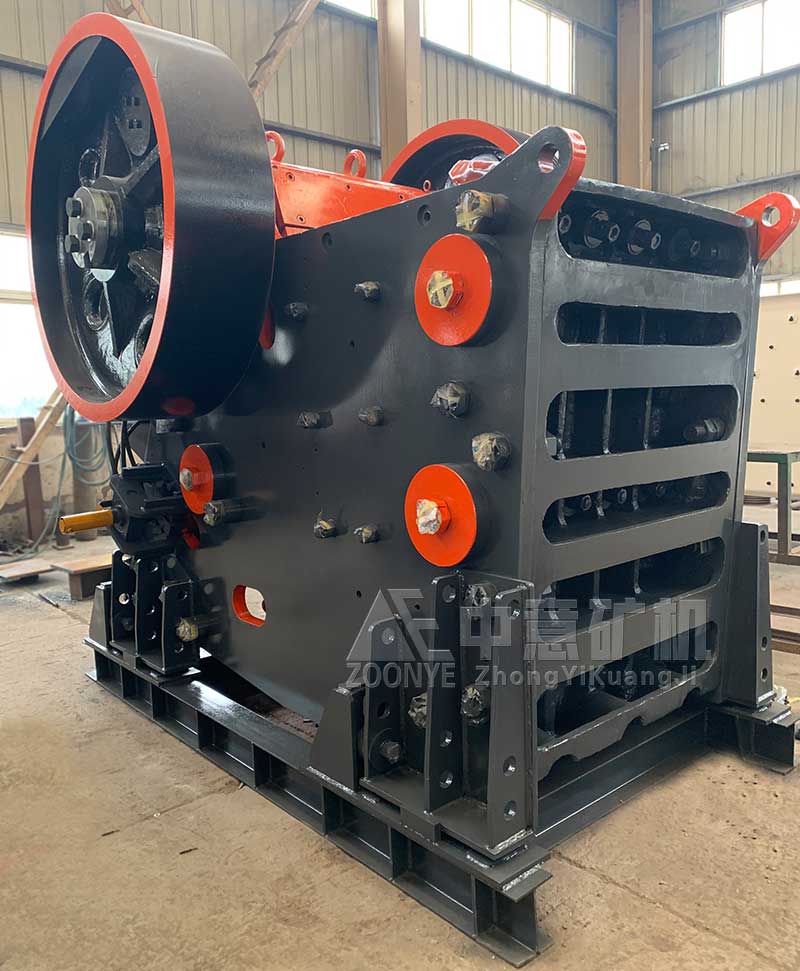

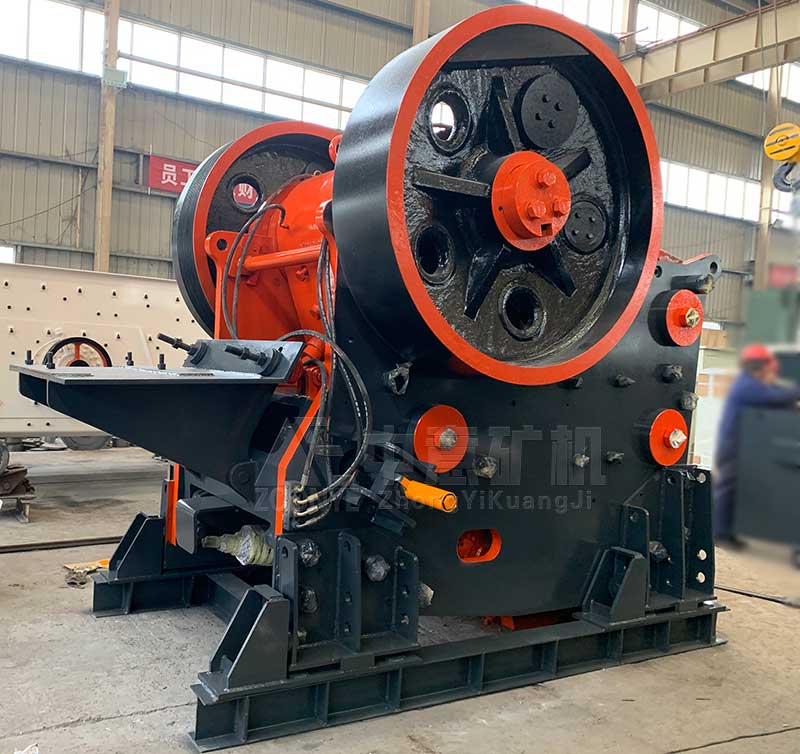

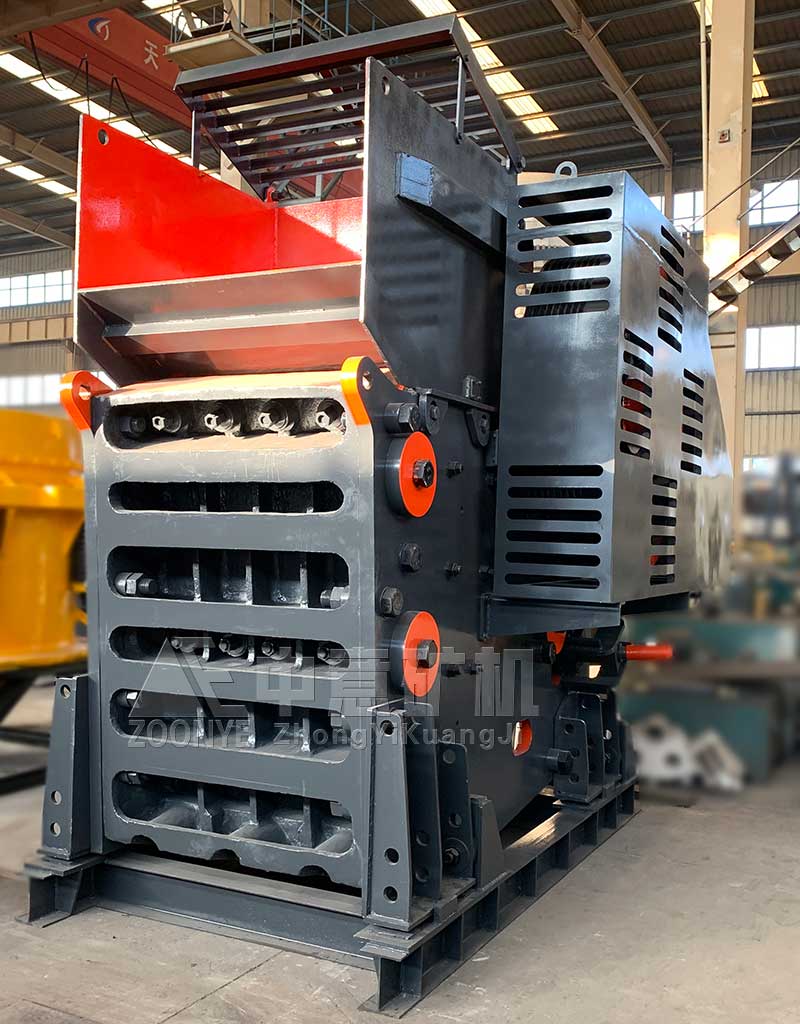

JC110 jaw crusher

Working Principle

Working principle of JC type jaw crusher

The JC series European crusher works in the bending and extrusion type: the motor drives the belt and pulley, and the moving shaft moves up and down through the eccentric shaft. When the movable jaws rise, the angle between the bracket and the movable jaws becomes larger, thereby pushing the seesaw closer to the fixed jaws, while crushing or crushing the material to achieve the purpose of crushing; when moving downward, the bracket and the movable jaws The angle between the jaws becomes smaller, and the moving jaws are under the action of the pull rod and spring. After leaving the fixed jaws, the crushed materials are discharged from the lower opening of the crushing chamber.

Product Advantages

•High quality workmanship and materials

•Modular, weld-free construction

•Larger bearings than similar crushers, four bearings are the same size

•Cast steel body and front and rear frames

•Integrated cast steel bearing housing

•Repairable crusher frame for excellent performance

•Correct cavity design

•Large stroke, efficient speed and high installed power

•Small discharge port design

•Various seesaws and cheeks for various applications Low cost and installation costs

•Easy to automate

•Fast and safe double wedge discharge opening adjustment system

•Protective panels installed behind the seesaw

• Rubber block installation

•Integrated motor base

•Flywheel guard is compact and easy to maintain

• Automatic grease lubrication systems for a wide range of fixed and mobile equipment

Technical Parameters

Note: If browsing on mobile phone, please swipe left or right
